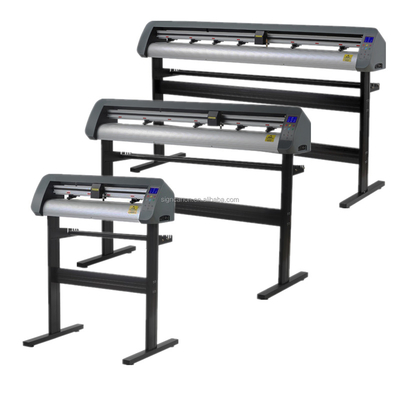

Signkanon th740 th1300 Vertical Cutting Vinyl Cutter Plotter Price Optical Sensor High Resolution Cut and Full Pen Die Cut Vinyl

1.0 Sets
MOQ
Signkanon th740 th1300 Vertical Cutting Vinyl Cutter Plotter Price Optical Sensor High Resolution Cut and Full Pen Die Cut Vinyl
풍모 갤러리 제품 설명 따옴표를 요구하십시오
풍모
제품 사양
Model Number: TH740/1300/1600
Voltage: 220V
Cache Capacity: 4
Paper Feed Width: 74CM/136CM/166CM
Cutter Pressure: 10-1000g (digital adjustment)
Cutting Width: 63CM/126CM/155CM
Cutting Speed: 500-800mm/s
Driver: Big power step motor, micro-step driver
Cutting Length: Length is unlimited
Repeat Cutting: Manual/Auto contour cutting function with sensor
Size: Packing size 1090*340*400mm
Product name: TH740/1300/1600
Interface: U Disk/ serial port, USB
Media Way: Auto sheet feeding system
Control panel: 11 membrane buttons , 2.4 inch high definition LCD screen
Main board: 32-bit ARM7 CPU
Mechanical resolution: 0.025mm/Steep
Cutting Function: Die cut and Full cut
Max cutting width: 63cm/126cm/155cm
Feeding width: 74cm/136cm/166cm
Quantity: Min 1set
기본 정보
Model Number: TH740/1300/1600
결제 및 배송 조건
Packaging Details: 1.Double carton packing
Supply Ability: 1000 Set/Sets per Month
제품 설명
Product Description
High precision label sticker cutting manual contour plotter cutter




Why choose us?
※Hardware
Technically-advanced cutter with outstanding quality and durability.
※Controller
Controller of our own with advanced algorithm, it is powerful, trustable and user friendly.
※Software
We develop software by ourselves, we supply software development kit for more possibilities.
Performance Features:
◎High precision of cutting 2mm small fonts
◎ Compatible to all files from Artcut, Signmaster, CDR, AI, CAD, Flexi etc pattern making software
◎2.4inch industrial LCD display screen --- Longer service life 2.4inch
◎Silicon buttons --- Easier operation
◎Two languages selection: Chinese and English
◎ With contour cutting function: Four marks detection manually
◎ Multiple interfaces:Serial port, USB, U disk (Bluetooth/ wifi optional)
◎U disk offline working: .plt format file can be copied to U disk, and work without PC connection
◎ Various material can be cut: vinyl, PU, PVC, PET ◎Application: label cutting, T-shirt pattern heat transfer, wall / car sticker cutting
>>>Quotation!Click!
Remark:
1. This machie without professional software
2. WIFI function is optional
3. Consumable parts are not in the maintenance list. (Blade, blade holder, cutting stripe, pinch roller)
Normal contour cutter
Model
TH740L
TH1300L
TH1600L
Floor stand
Optional
With
With
Cutting
Direct cutting and contour cutting in printed material
Feeding width
74cm
130cm
166cm
Cutting width
63cm
120cm
155cm
Mainboard
32-bit ARM7 CPU, 128Mb, High-speed cache memory
Control Panel
11 membrane buttons, 2.4in screen
Driver
High speed, big power step motor, micro-step driver
Interfaces
USB, U disk, serial port
Cutting Speed
500mm/s
Cutting pressure
10-500g (digital adjustment)
Blade
30/45/60 degree, imported blade
Power supply
AC220V /110V, 50~60Hz
Plotter instruction
Compatible DM/PL, HP/GL
Package size
106*34*40
159*34*40
190*34*40
Gross Weight
28kg
36kg
42kg
Automatic contour cutter
Model
TH740A
TH1300A
TH1600A
Floor stand
Optional
With
With
Cutting
Direct cutting and contour cutting in printed material
Fcuntion
With Automatic contour cutting function
Feeding width
74cm
130cm
166cm
Cutting width
63cm
120cm
155cm
Mainboard
32-bit ARM7 CPU, 128Mb, High-speed cache memory
Control Panel
11 membrane buttons, 2.4in screen
Driver
High speed, big power step motor, micro-step driver
Interfaces
USB, U disk, serial port
Cutting Speed
500mm/s
Cutting pressure
10-500g (digital adjustment)
Blade
30/45/60 degree, imported blade
Power supply
AC220V /110V, 50~60Hz
Plotter instruction
Compatible DM/PL, HP/GL
Package size
106*34*40
159*34*40
190*34*40
Gross Weight
28kg
36kg
42kg
Application
Application
It can cut various material, such as vinyl, PU, PET, PVC, heat transfer material, and even cut reflective film. Work with large format printer / heat press machine / office printer /Sticker cutting / heat transfer pattern / traffic sign。
Installation Instructions
Spare Part
Standard accessory box:
Three blades, one blade holder, one pen holder, USB cable, Serial port cable, power cable, one year warranty card.
