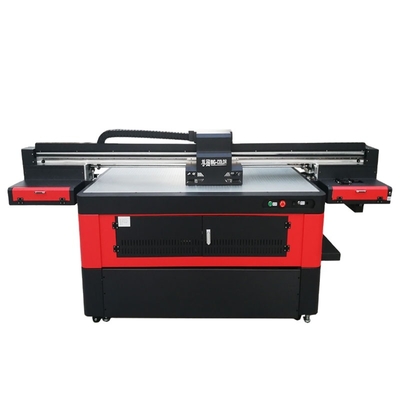

Big Color small size uv flatbed printer can print on rotary and flat material by one printer,It can print colors , white and varnish at the same time.It also support on mirror printing and back printing which means it can work on all kinds of industry production.
SPECIFICATIONS FOR ZT-1610 | ||||||
Product Name | 1610 size uv flatbed printer | |||||
Model | ZT1610 | |||||
Printer head | 1/2/3 tx800 heads | |||||
Speed | 7.5m2/h(Production mode) / 6.5m2/h(Precision mode) / 5.5m2/h(High precision mode) | |||||
Maximum Resolution | 720*4320 dpi | |||||
Ink | 4 color +white +varnish | |||||
Printing Type | Glass ,Acylic board,Wood,Board,Metal,Leather and so on | |||||
Machine Dimension | 2.8*1.66*1.38M | |||||
packing size | 2.92*1.82*1.22M=6.48CBM | |||||
1) Not only can print on flatbed material but also can printer cylinders.
2) Automatic stirring system for white ink and lacking ink alarming system.
3) PTFE cellular flatform,durable and stable.
4) Carriage height could reach to 8cm ,and it can work on 3 heads by varnish+white+color.
5) Support for multiple printing on same picture by one time,fit for most special production request .
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packaging | ||
Size | 2.92*1.82*1.22M=6.48CBM | |
Weight | 630KG | |
Packaging Details | The normal package is wooden box. If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
Delivery | ||
Delivery Time | 7 days after payment | |
Port | Shanghai port or as customer's request. | |
