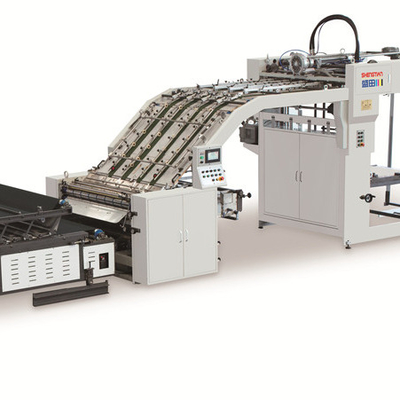

STM 1650 Automatic Flute Lamination Laminator Machine
Specifications
|
Model |
STM1300 |
STM1450 |
STM1650 |
|
Maximum Paper Size |
1300*1300mm |
1450*1450mm |
1650*1600mm |
|
Minimum Paper Size |
350*350mm |
350*350mm |
400*400mm |
|
Max. Machine Speed |
153m/min |
153m/min |
153m/min |
|
Total Power |
16.25kw |
16.25kw |
18.1kw |
|
Bottom sheet |
A,B,C,E,F Flute |
A,B,C,E, F Flute |
A,B,C,E,F Flute |
|
Top sheet |
150-450gsm |
150-450gsm |
150-450gsm |
|
Weight |
6700kg |
7200kg |
8000kg |
|
Dimensions(L*W*H) |
14000*2530*2700mm |
14300*2680*2700mm |
16100*2880*2700mm |
